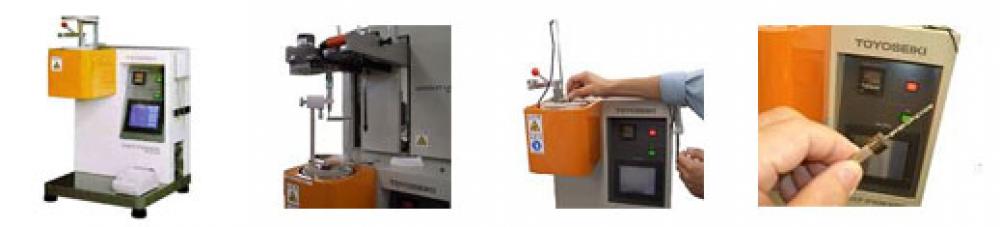

Scope Calibration of Melt Indexer
|
1.Temperature |
|
|
Parameter / Range / Item |
Calibration measurement capabilities |
|
(Temperature Accuracy and Distribution.) |
|
|
190 to 300 °C |
+/- 0.44 °C |
|
Standard / Technique / Method /Equipment / Remark |
|
|
In-house method WI 7.2-21 by direct comparison to standard Thermometer. (Accreditation) |
|
|
2.Temperature |
|
|
Parameter / Range / Item |
Calibration measurement capabilities |
|
(Temperature Recovery) |
|
|
190 to 350 °C |
- °C |
|
Standard / Technique / Method /Equipment / Remark |
|
|
In-house method WI 7.2-11 Verification by Standard stopwatch. |
|
|
3. Mass |
|
|
Parameter / Range / Item |
Calibration measurement capabilities |
|
100.0 to 500.0 g. |
+/- 0.2 g. |
|
500.0 to 1000.0 g. |
+/- 0.3 g. |
|
1000.0 to 10000.0 g. |
+/- 0.3 g. |
|
Standard / Technique / Method /Equipment / Remark |
|
|
In-house method WI 7.2-01 by comparison with standard weight. |
|
|
4. Dimension |
||||
|
Parameter / Range / Item |
Calibration measurement capabilities |
|||
|
(Accessory, Diameter of Piston) |
||||
|
8.890 mm. |
+/-0.002 mm. |
|||
|
9.474 mm. |
+/-0.002 mm. |
|||
|
Standard / Technique / Method /Equipment / Remark |
||||
|
In-house method WI 7.2-11 by comparison with standard Micrometer. |
||||
|
Parameter / Range / Item |
Calibration measurement capabilities |
|||
|
(Accessory, Diameter of Orifice) |
|
|||
|
8.000mm. |
+/-0.002 mm. |
|||
|
9.500mm. |
+/-0.002 mm. |
|||
|
2.095mm. |
+/-0.002 mm. |
|||
|
Standard / Technique / Method /Equipment / Remark |
||||
|
In-house method WI 7.2-11 by comparison with standard Micrometer and comparison to standard Diameter gauge. |
||||
|
Parameter / Range / Item |
Calibration measurement capabilities |
|||
|
(Accessory, Diameter of Go gauge & No go gauge) |
|
|||
|
2.090mm. |
+/-0.001 mm. |
|||
|
2.100mm. |
+/-0.001 mm. |
|||
|
Standard / Technique / Method /Equipment / Remark |
||||
|
In-house method WI 7.2-11 by comparison with standard Micrometer. |
||||
|
Parameter / Range / Item |
Calibration measurement capabilities |
|||
|
(Diameter of Cylinder) |
|
|||
|
9.550 mm. |
+/-0.003 mm. |
|||
|
Standard / Technique / Method /Equipment / Remark |
||||
|
In-house method WI 7.2-11 by comparison with standard Diameter gauge. |
||||
|
Parameter / Range / Item |
Calibration measurement capabilities |
|||
|
(Distance of Flow rate) |
|
|||
|
1.00-20.00 mm. |
+/-0.008 mm. |
|||
|
Standard / Technique / Method /Equipment / Remark |
||||
|
In-house method WI 7.2-12 by comparison with standard Micrometer head. |
||||
* expressed as an uncertainty (+/-) which for k=2, providing a level of confidence of approximately 95%
