Full Set IPX1 to IPX8 IP Test Apparatus- No Housing IP System

All

Category

Download file

Detail :

A Whole Set of water spray IP Test apparatus, IPX1 X2 X3 X4 X5 X6 X7 X8 full set water ingress IP test equipment -No Housing Type. One complete system to perform IP dust and rain test, one stop solution for IP test.

Description

Full set IPX1 to IPX8 IP Test Apparatus
Suitable for build a whole IP test system for laboratory

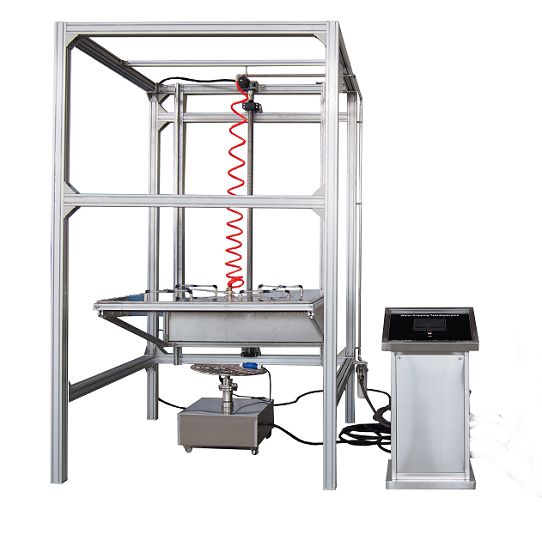

IPX1X2 water drip test, water drips vertically

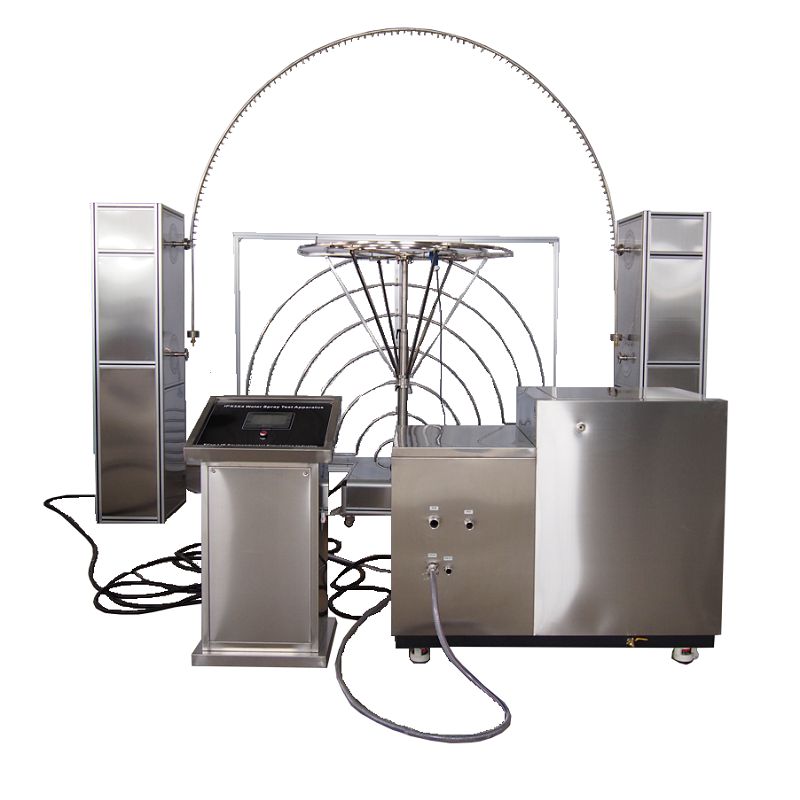

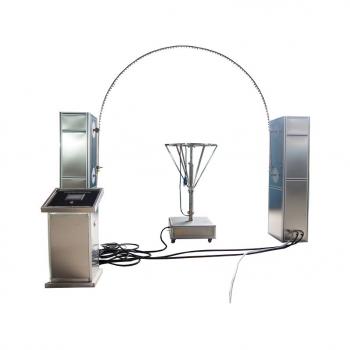

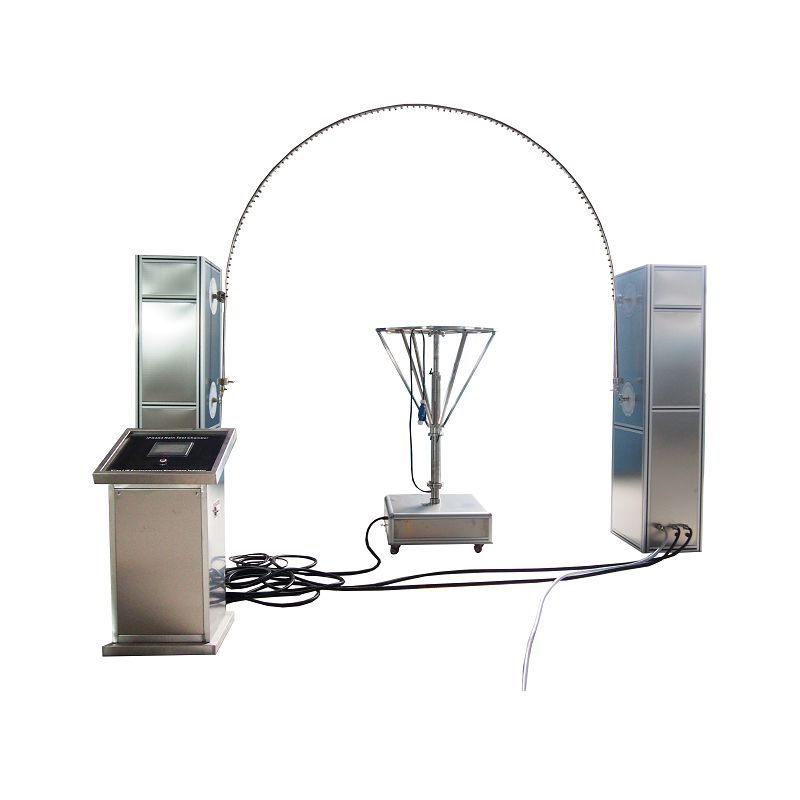

IPX3X4 water spray test, total 8pcs of oscillating tubes
Radius is 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm
IPX5X6 water jetting test

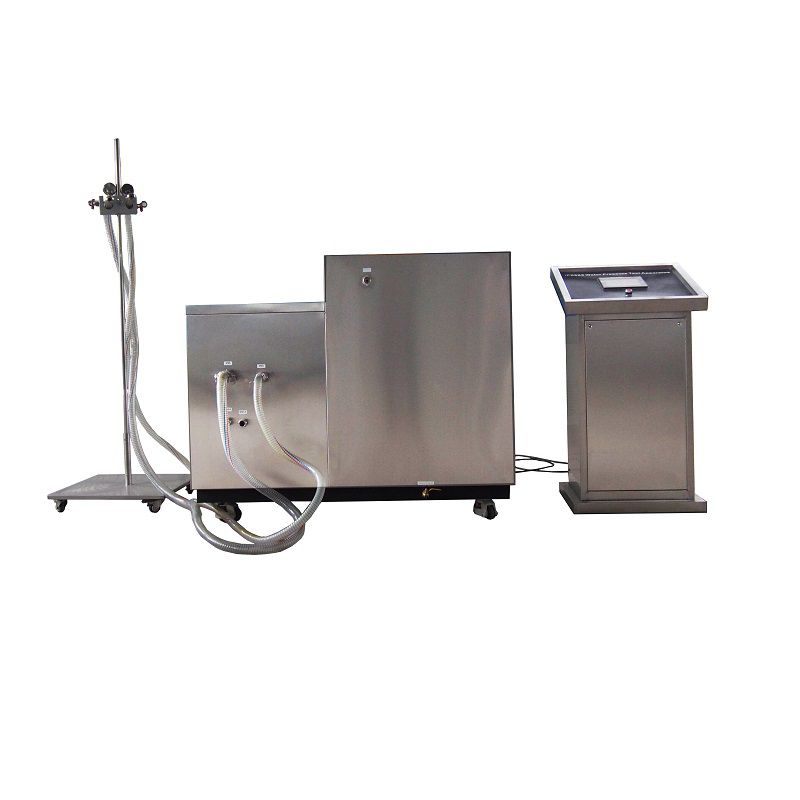

IPX7 IPX8 Water Immersion Test

Product Models

Model	Internal Dimensions (mm)	Overall Dimensions (mm)	Oscillating Tube Radius	Swing Angle of Oscillating Tube
RNH-12	1400(D)*1400(W)	1600(D)1600(W)2500(H)	Drtip tray type	N/A
RNH-34	According to size of IPX3X4 oscillating tube	Uncertain	200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm	0 to ±180° Adjustable

Product Accessories

Number	Name	Description
No.1	Oscillating tube	Radius: 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm
No.2	IPX3 IPX4 Hand hold spray nozzle	IPX3 IPX4 Hand hold spray nozzle
No.3	IPX1 IPX2 Drip tray	IPX1 IPX2 Drip tray & spray nozzles
