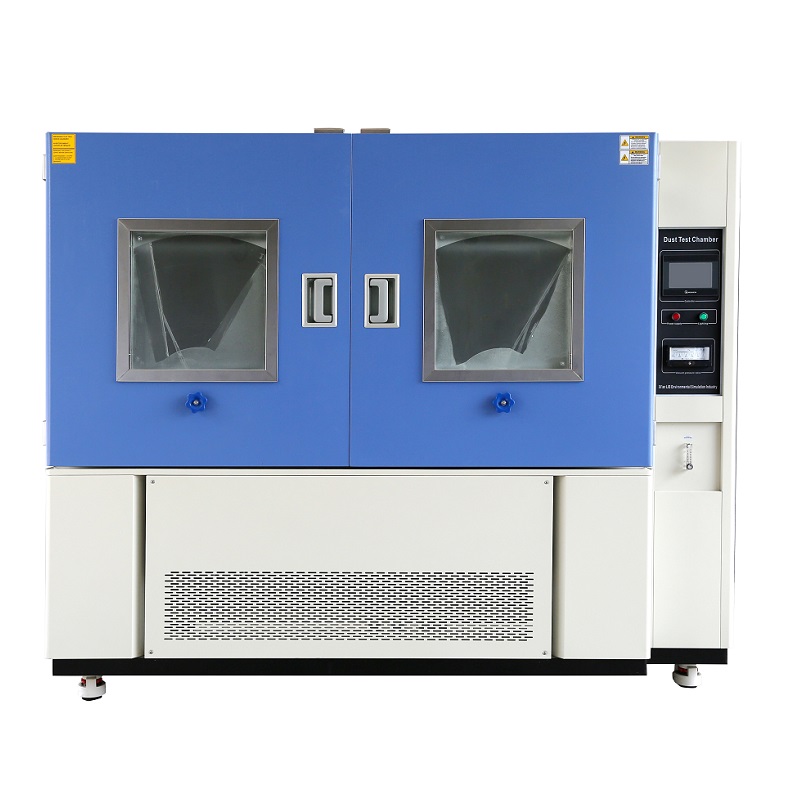

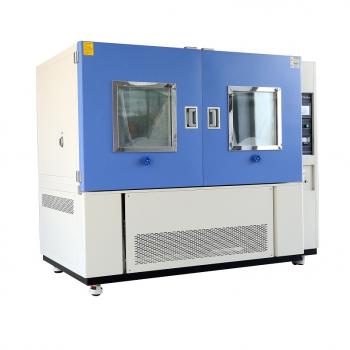

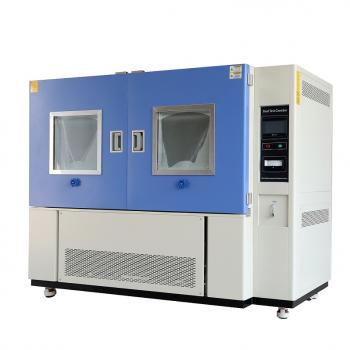

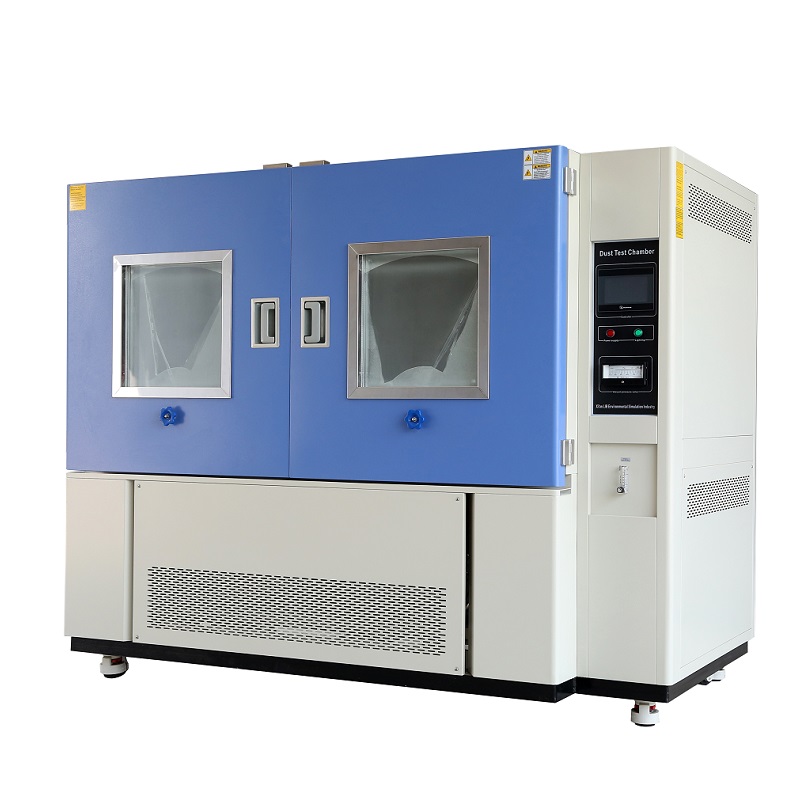

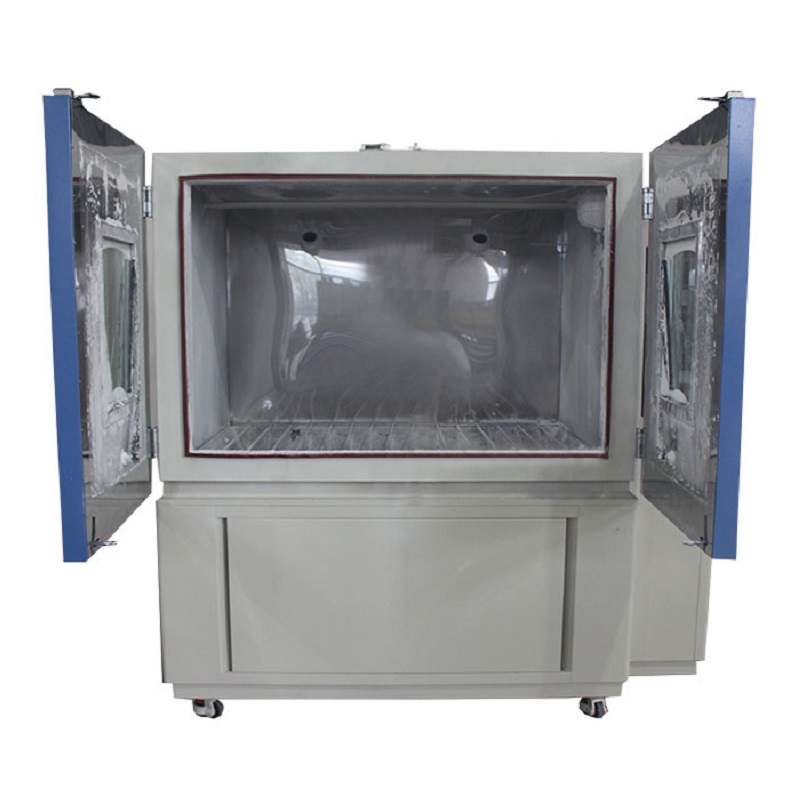

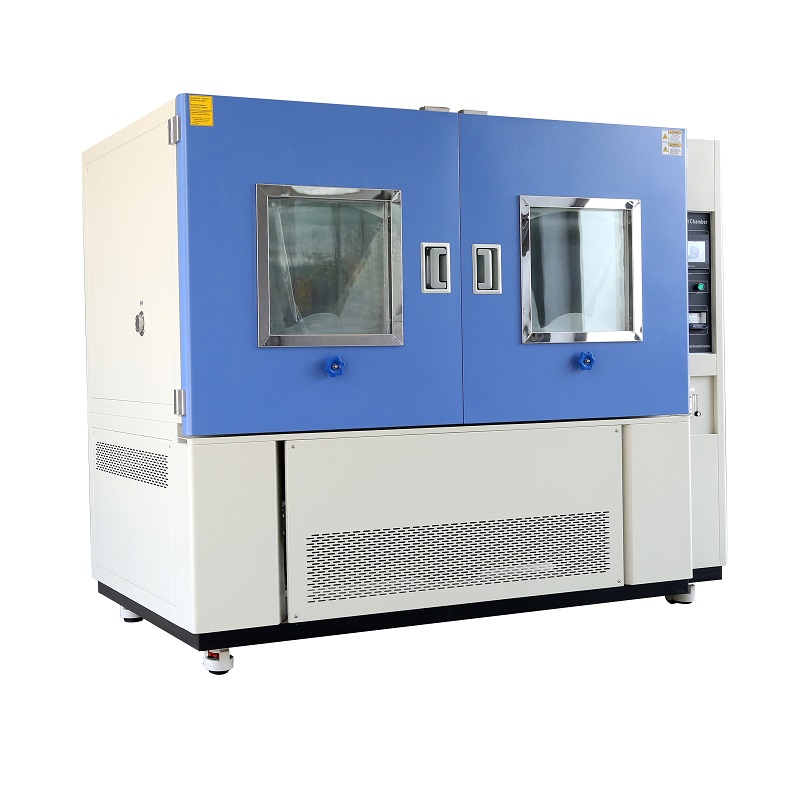

Larger Sand and Dust Test Chambers
Detail :

Larger series sand and dust test chambers  allows for the large and more quantity specimens, capacity of 1500 liters and 2000 liters as standard. Great for laboratories and large industrial products.

Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653,MIL-STD-810G and many others.

The airflow circulates upward from the bottom, blowing the dust circulation,forcing dust around the specimens. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.



  • Larger capacity of 1500 liters and 2000 liters.
  • Standard and custom.
  • Suitable for large and more quantity products
  • Dust blowing through special wind tunnel and air outlet
  • Constant dust concentration
  • 2 viewing windows with wipers
  • 2 doors with tight seal
  • Programmable color LCD touch screen controller
  • Multi-language interface
  • USB and Ethernet
  • Strong stainless steel specimen shelves
  • Build -in power interface and vacuum system for specimens
  • Internal illumination in test room
  • Reliable performance
  • Safety protection system
  • CE mark, ISO17025 calibration


Product Models


Internal Dimensions(mm)

Overall Dimensions (mm)

Temperature Range

The Talcum Powder Amount

DI-1500 1000*1500*1000 1250*1900*1960 Ambient to +50℃ 2 ~ 4kgs/m3
DI-2000 1000*2000*1000 1300*2400*1960 Ambient to +50℃ 2 ~ 4kgs/m3

Standard & Custom


Product Accessories






No.1 Talcum powder

  Partical size:45μm
No.2 Temperature heater

  Temperature heater

  Nichrome heater
  and more
